CCTV Camera Installation and Commissioning

• CCTV Camera Installation and Commissioning:-
• Wireless Security Solution with Network design.
• Online connectivity with electronic security system

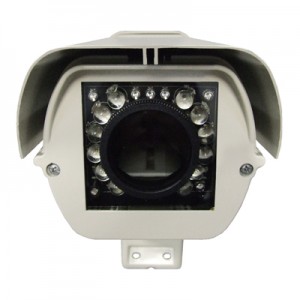

• Type: Color
• Environment: Indoor/Outdoor
• Sensor Chip: 1/4″ CMOS
• Analog Resolution: 480 TV Lines
• Lens: 3.6mm Board Auto-Iris Lens
• Light Sensitivity: 0 Lux
• Video Format: NTSC
• Illumination Range: 65′
• IR LED Count: 24 Infrared LEDs
• Voltage: 12v DC
• Mounting Bracket: Included
• Power Supply: Sold Separately
• One Year Warranty

A C mount is a type of lens mount commonly found on 16mm movie cameras, closed-circuit television cameras, and trinocular microscopephototubes.
C-mount lenses provide a male thread which mates with a female thread on the camera. The thread is nominally 1.000 inch (25.4 mm) in diameter, with 32 threads per inch, designated as “1-32 UN 2A” in the ANSI B1.1 standard for unified screw threads. The flange focal distance is 17.526 millimetres (0.6900 in) for a C mount.
Merely to say that a lens is “C-mount” says very little about the lens’ intended use. Unlike all other lens mounts, each of which is used for only a single format, C-mount lenses have been made for many different formats, the largest being 4 times as large as the smallest. The vast majority of C-mount lenses are built for the 8-mm and 16-mm film formats and the 1/3-, 1/2-, 2/3-, and 1-inch video formats, which corresponds to a range of image circles from 5 to 17 mm diameter, approximately. Some manufacturers have recently introduced lenses for the 4/3 inch / 1.3 inch format but these remain very expensive

• 1/3″ Ultra Wide Dynamic DPS imager
• 540 TV lines of resolution
• 32-bit digital processing
• 7 Wide Dynamic presets for easy set up and camera configuration
• 7 Dynamic range: 102 dB typical/ 120 dB max – 100 to 200 times greater than conventional CCD cameras
• 12 VDC/24 VAC with line lock
• 3-D axis gimbal bracket
• Higher frame rates – 50 fps progressive video capture for sharp image definition in all lighting conditions
• 0.4 lux @ F1.4 for true colour representation in daytime and black and white at night
• Local video output for set-up
• Vandal resistant aluminium alloy housing with polycarbonate dome

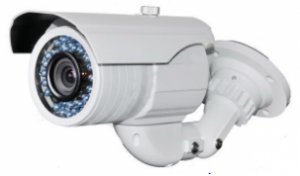

• Discreet, bullet-style camera with switchable IR cut filter and 18 IR LEDs
• Weatherproof housing with IP 65 rating
• 3.8-9.5 mm, F1.2 built-in Vari-focal lens
• Super high resolution color: 550 TVL – 1/3″ Sony Super HAD CCD
• Super Digital Noise Reduction technology for noise free images
• IR LED visible range of 65 ft. (20m)
• Easy to install mounting bracket reduces installation time
• Two-conductor pigtail is standard for connection to barrel connector
• Equalization valve prevents vacuum effect caused by sudden changes in barometric pressure

We offer our client an excellent quality range of NPR Cameras, which are manufactured from high grade quality raw materials. These NPR Cameras can be customized as per our precious customers specifications. These NPR Cameras are widely known for its durability and quality. Our NPR Cameras can be availed at industrial leading price. These are made using optimum quality raw material and latest technology systems, which ensures that they are durable, efficient in performance, require low maintenance and runs for long time.

I.P Camera
Ip cameras comes with two main categories:

• Centralized IP cameras:
  They are used for the purpose of surveillance for security management and requires central network video recorder to handle recording, video and alarm warning system.
• Decentralized IP cameras:
  They have network video recorder built in, hence they do not require video management software. Consequently video camera can record directly to any kind of digital storage media [Flash drive, Hard disk drive, and any Network attached storage. In video surveillance market in India, ip camera is having significant market share.

Difference between IP Cameras and CCTV cameras
Ip camera [Internet protocol camera] is very much different than CCTV camera technology. Ip camera are based on internet protocol can send and receive data via computer network [WAN/LAN] and Internet. CCTV cannot do that. Resolution clarity of IP cameras is far better than CCTV cameras. Two way data and audio – the ip camera can send and receive data to any digital device. High resolution clarity – resolution of ip cameras are higher than analog CCTV cameras. CCTV cameras resolution is restricted by standards. Smart phone: some ip cameras have in-built Voip [voice over ip] function make device capable send and receive phone calls based on events, allowing voice and video interaction through smart phone. One high megapixel ip camera can cover more area then CCTV IP cameras are basically Network cameras

NVR Camera
A network video recorder (NVR) is a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. NVRs are similar to DVRs but with several distinct differences. NVRs take video input over a network, as opposed to directly connecting to the NVR via a video capture card or tuner. The main distinction being that video on a DVR is encoded and processed at the DVR, while video on an NVR is encoded and processed at the camera, and streamed to the NVR for storage or remote viewing. An NVR contains no dedicated video capture hardware. However the software is typically run on a dedicated device, usually with anembedded operating system, so NVRs are often mistakenly called DVRs.Arihant provides a wide range of NVR’s according to customized needs.

Spy cameras may be small devices that are easy to operate but they utilize complex digital technology to function. When shopping for the right spy cam, it is important to fully understand a spy cam’s technical specifications in terms of what they mean and how they will affect its video and image output.
